PNEUMATIC MICRO CYLINDERS
C2 SERIES ISO 6432


AZ Pneumatics Pneumatic Micro Cylinder ISO 6432 - Brisbane & Australia

Click to view ISO 6431 Cylinder Catalogue Pages Pneumatic Cylinder ISO 6432
Click to view PDF version of this (84kb)


Micro Cylinder for Fast / Repetitive Operations

AZ Pneumatics air operated micro cylinders (also called round design cylinders / mini cylinders), manufactured and distributed in Australia by Universal Fluid Power. These are high strength micro cylinders built for continuous high-speed operation. Double crimped end caps and corrosion resistant body. Slim profile for compact installation further enhanced by optional port orientation. Supplied standard with magnetic piston; reed switches optional. Supplied complete with mounting nut and rod nut.



Full range of micro cylinders and mountings available ex-stock Brisbane, Queensland. Fast delivery nationwide to all major cities and regional areas in Australia including Brisbane, Sydney, Melbourne, Adelaide, Hobart, Darwin, Perth & Canberra.



Scroll down for dimensions and CAD drawings.

TECHNICAL DATA C 2 SERIES

MICRO CYLINDER MATERIALS

Barrel
Piston Rod
End Covers
Piston
Buffers & Seals
Bush
Magnet
Stainless Steel
AISI 304 Stainless Steel
Anodised aluminium alloy
Brass
NBR or Viton
Sintered bronze
Magnetic Iron Compound

MICRO CYLINDER OPERATION

Medium

Working Pressure
Temperature
Filtered compressed air, with or without lubrication.

Max 10 bar
NBR: max + 80° C
Viton: max +110°C

MICRO CYLINDER STANDARD BORE SIZES (mm)

10, 12, 16, 20, 25

MICRO CYLINDER STANDARD STROKES (mm)

10, 20, 25, 30, 40, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 400, 500.

MICRO CYLINDER SPECIAL STROKES

Manufactured to order.

MICRO CYLINDER MODELS

100
101
150
160
170
D.A. Stainless Steel Rod
D.A. Stainless Steel Through Rod
D.A. Stainless Steel Rod & Cushions
S.A. Stainless Steel Retracted Rod
S.A. Stainless Steel Extended Rod

OPTIONS

Viton Seals available as a special - add a 'V'
Extended Piston Rod - see CS Series
Magnetic - (supplied standard) add an 'M'
Reed Switch Part No. CRS KT-30R

ORDER INFORMATION


Order Code for C2 series - Micro Cylinders

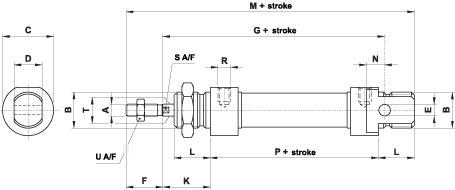

Dimensions for C2100/2150/2160 Bore 10-25 ISO 6432 Pneumatic Micro Cylinder


Dimensions for Micro Cylinder


DWG

ø

A

B

C

D

E

F

G

K

L

M

N

P

R

S

T

U

10 M4 M12x1.25 ø17 8 ø4 12 64 16 12 86 6 46 M5 - ø4 7
12 M6 M16x1.5 ø19 12 ø6 16 75 21 17 105 9 50 M5 5 ø6 10
16 M6 M16x1.5 ø24 12 ø6 16 83 22 18 113 9 56 M5 5 ø6 10
20 M8 M22x1.5 ø28 16 ø8 20 94 24 20 132 11.5 68 G1/8" 7 ø8 13
25 M10x1.25 M22x1.5 ø33 16 ø8 22 104 28 22 141 13 69 G1/8" 9 ø10 17

Note: CAD drawings for this item not yet available - stay tuned.

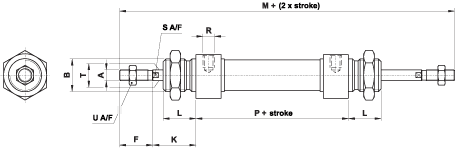

Dimensions for C2101 Bore 10-25 ISO 6432 Pneumatic Micro Cylinder with Through Rod



Dimensions for Pneumatic Micro  Cylinder with Through Rod


DWG

ø

A

B

F

K

L

M

P

R

S

T

U

10 M4 M12x1.25 12 16 12 102 46 M5 - ø4 7
12 M6 M16x1.5 16 21 17 125 50 M5 5 ø6 10
16 M6 M16x1.5 16 22 18 133 56 M5 5 ø6 10
20 M8 M22x1.5 20 24 20 156 68 G1/8" 7 ø8 13
25 M10x1.25 M22x1.5 22 28 22 169 69 G1/8" 9 ø10 17

Note: CAD drawings for this item not yet available - stay tuned.
